APEHANGER UPGRADE KIT


THIS PAGE WILL SHOW YOU...

HOW TO: "Economically" Install Apehangers onto your OCC Schwinn Stingray and we provide everything you will need to DO IT!



The OCC Schwinn Stingrays HAVE TWO (2) DIFFERENT STYLES OF HEADSETS:

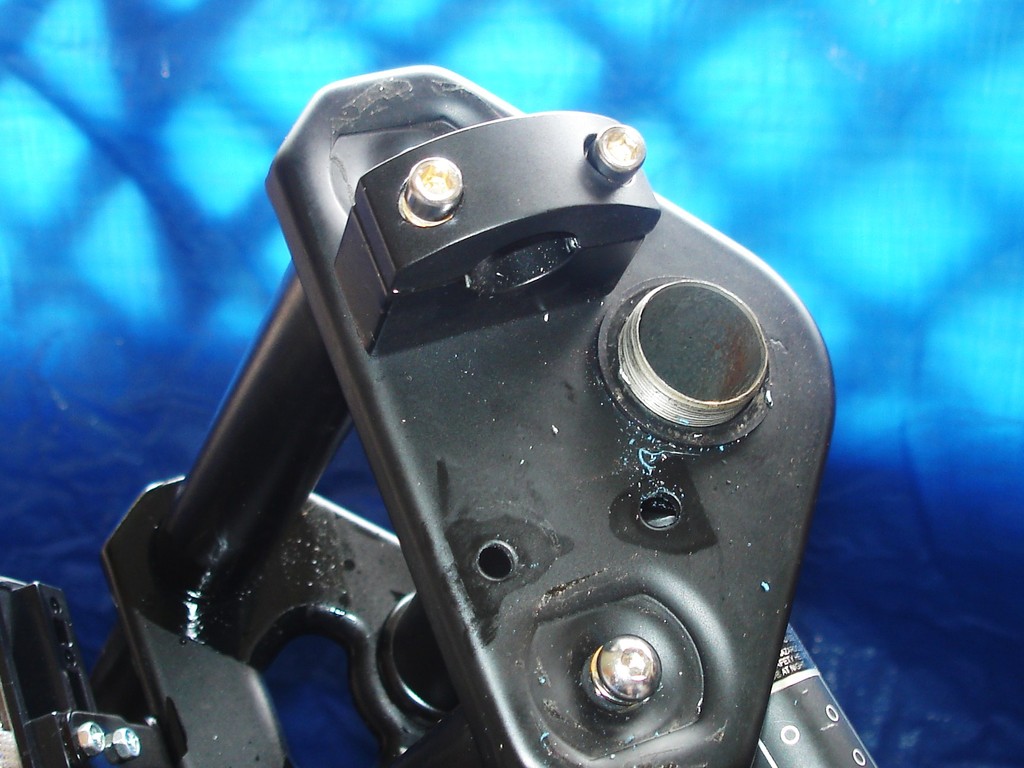

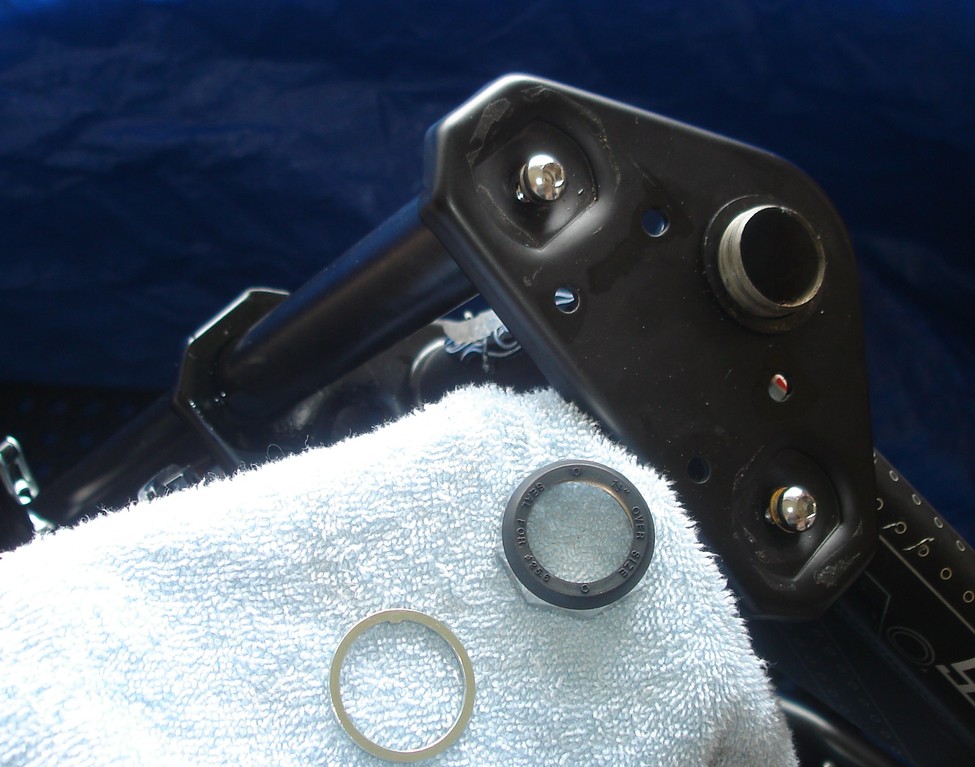

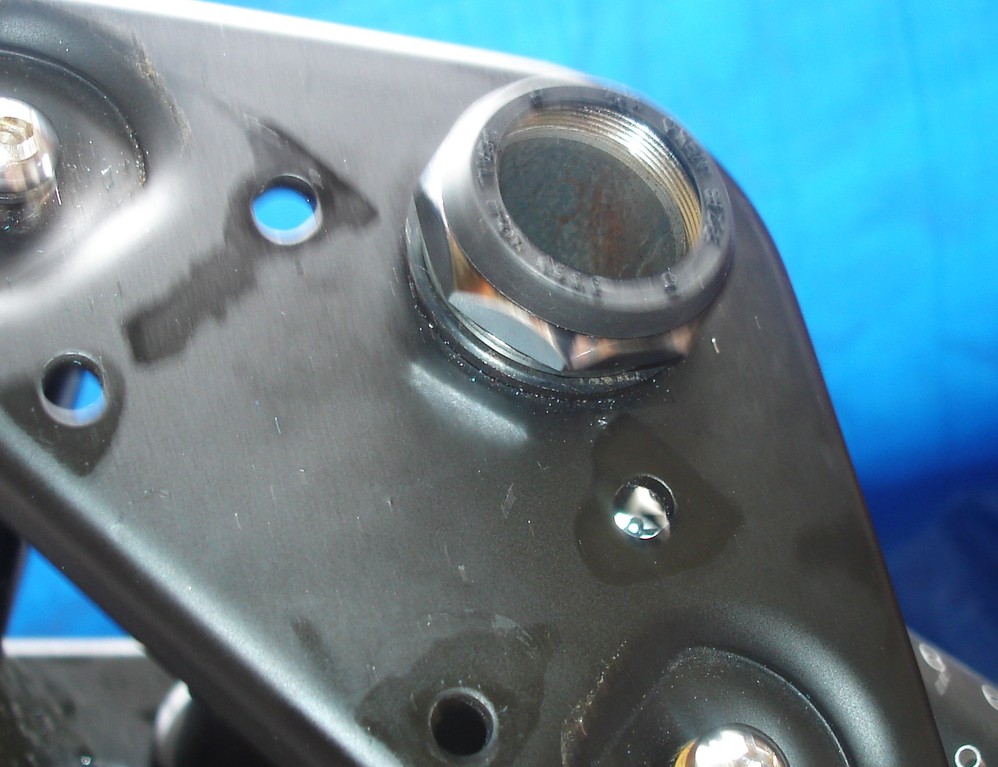

Threadless & Threaded -Triple Tree HEADSETS. The  SLIDE SHOW on this page shows the installation of "Apehanger" Hi-Rise Handlebars onto an OCC Schwinn with a Threaded Headset.

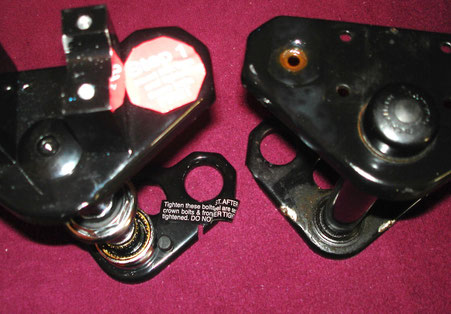

The photo [just below] displays the 2 style of "triple trees" that come on the OCC Schwinn Stingray.  [Left] FLAT TOP CAP IS Threadless and [Right] LARGER RAISED TOP CAP IS Threaded.



IF YOU HAVE a THREADLESS Triple Tree [left] YOU CAN  Install "Apehangers" however, the stock handlebar clamps are not really strong enough to hold them in place.  After installation - you will likely have to drill a pilot hole thru the top handlebar clamp AND Handlebar.  Then, insert a self tapping screw to hold them in place.           ...But I would not recommend this METHOD.



The BEST way to UPGRADE to Apehangers is = to use a THREADED style triple tree [BELOW RIGHT] and follow the steps in my slide show.



Everything you need can be purchased right here on this page.  ...Including "threaded" triple trees.  If any further information is needed contact me using the form below.



Threadless [left]  Threaded [right]
Threadless [left] Threaded [right]



BELOW ARE THE [INDIVIDUAL] ITEMS YOU WILL NEED TO ORDER TO ACCOMPLISH THIS UPGRADE.  Please designate colors where applicable.   If you have any questions contact me in the form below and I will reply promptly...


1 1/8TH INCH TOP CAP & LOCK WASHER

$14.99

  • 2 lb
  • Available
  • Ships within 1-3 days1

1 1/8" INCH QUILL

Works in conjunction with HD 4 Bolt Gooseneck below...

$24.99

  • 2 lb
  • Available
  • Ships within 1-3 days1

HEAVY DUTY 4 BOLT STEM / GOOSENECK

$24.99

  • 2 lb
  • Available
  • Ships within 1-3 days1

14" inch APEHANGER Handlebar

$36.99

  • 2 lb
  • Available
  • Ships within 1-3 days1

XL Brake Cable and Casing

This is the cable you need if you WANT to lengthen your brake cables to accomodate either 14 inch or 25 inch Apehangers. Your choice of cable casing [included] with brake cable order.

$17.99

  • 2 lb
  • Available
  • Ships within 1-3 days1

*OPTIONAL - THREADED / OCC SCHWINN STINGRAY "TRIPLE TREE"

INCLUDES: Brand NEW [complete] headset.



Typically we have plenty of BLACK OCC Schwinn THREADED triple trees - which matches up with many frame colors.



CONTACT US IN THE FORM BELOW TO REQUEST "yokes" in the color you prefer.     However, we do have some in primer - if you want to paint them yourself...

$56.99

  • 3 lb
  • Available
  • Ships within 1-3 days1
